Placing a DP-8 tonearm back in the box for storage

Important: A DP-8 must be stored in the same orientation as when mounted on a turntable - as indicated by the arrows on the ends of the box.

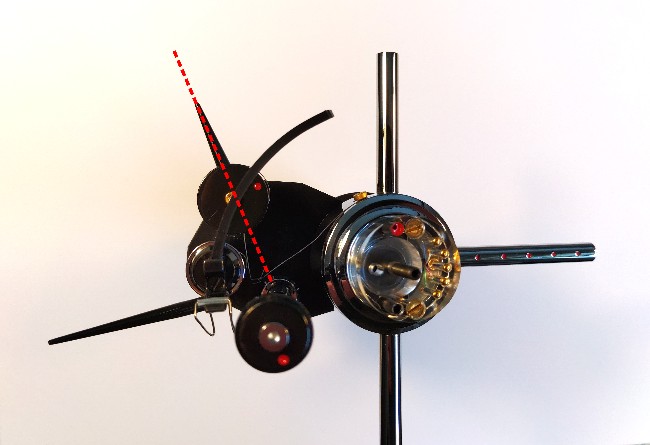

Turn the antiskating handle so that its extension points towards the VTA spindle:

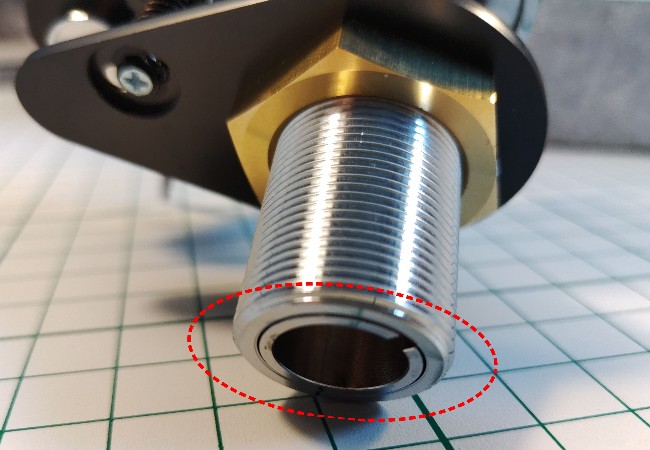

Adjust VTA so that the bottom of the bearing pillar is flush with the bottom of the arm bushing:



If the armbase is to be transported (and not just stored), place the black rubber spacer underneath the body of the armbase near the VTA spindle so that the end is flush with the side of the black plane. Press up on the counterweight rod slightly to keep the spacer in place. Then place the armbase into the box. Be careful to keep the antiskating handle and the girder part of the lifter free of the foam.

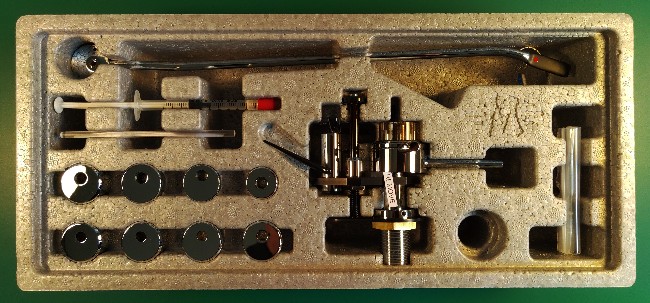

Below is a picture of a properly boxed DP-8:



The cable can be stored in the lid of the box like in the picture below:
